Features
Optimal design of boom-&column-structure ,Inner hydraulic oil tank renders a compact placement.
The key components of hydraulic- and electrical-system are from world famous brand,which ensure safety and stability.

For option:
1. Standard types without counter weight
2. Floor or shaft climbing
3. Step speed or stepless speed(proportional control)
4. Column length:5m,8m,10m
5. Delivery pipes for option as project budget:
⑴ Ordinary single straight pipe and cast steel bend,service life not more than 20,000m3 ；
⑵ High wear resistance double straight pipe and bend,service life not less than 50,000m3；

What are the general specifications and models of concrete placing boom?

The specification of concrete placing boom, with "maximum placing radius" as the main parameter to form a series.
The model of concrete placing boom is a concise expression of its main parameters and structural form.That is to say, customers from the model can be basic understanding of the concrete placing boom range and main composition.The expression of "structural form" is: control mode (graded or ungraded), with or without balance weight, number of boom segments, folding mode of boom.

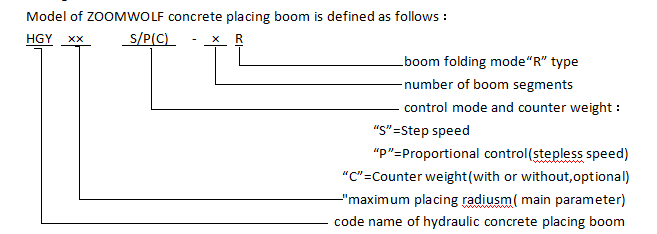

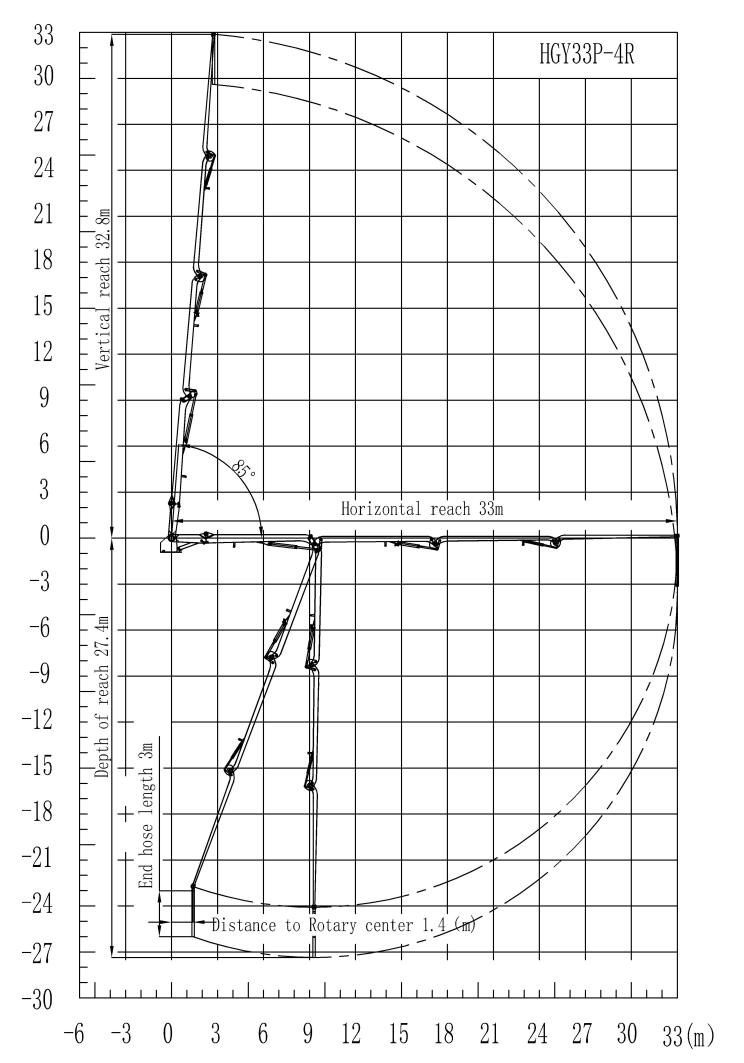

About the model
HGY ×× S or P C or blank - × R
① ② ③ ④ ⑤

① Hydraulic concrete distributor
② Round number of Max.radius(m)
③ Step speed regulation(S)or
Proportional control speed regulation(P)
④ With(C)or without(blank) counter weight
⑤ Arm section number ×Roll folding(R)

【Identification letter description】
S: Step-speed adjustment
P: Proportional (Stepless speed regulation)
C: Counter weight

【The sample】
1. Model HGY33S-3R means:
Without counter weight,max.radius 33m,step speed regulation and 3 roll-folding arms.
2. Model HGY33PC-4R means:
With counter weight,max.radius 33m, proportional control speed regulation and 4 roll-folding arms.
