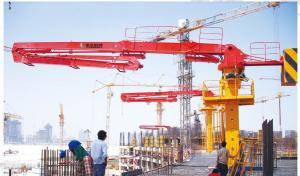

Professional Placing Boom Concrete Pump Remote Control ISO9001 Certification
Features
Optimal design of boom-&column-structure ,Inner hydraulic oil tank renders a compact placement.
The key components of hydraulic- and electrical-system are from world famous brand,which ensure safety and stability.
For option:
1. Standard types without counter weight
2. Floor or shaft climbing
3. Step speed or stepless speed(proportional control)
4. Column length:5m,8m,10m
5. Delivery pipes for option as project budget:
⑴ Ordinary single straight pipe and cast steel bend,service life not more than 20,000m3 ；
⑵ High wear resistance double straight pipe and bend,service life not less than 50,000m3；
| Technical Specifications |
| Model of placing boom | HGY29S-3R | HGY29P-3R | HGY29SC-3R | HGY29PC-3R |
| Performance | Max. radius (m) | 29 |
| Free standing height, | 22.7m,400° |
| Slewing range |
| Working temperature(℃) | 0～60℃ |
| Counter weight(kg) | / | 2930 |
| Total weight(kg) | 19100 | 22030 |
| Supply power to equipment | 380V/50Hz |
| Electric motor | Motor model | Y2-160L-4 |
| Power(kW) | 15 |
| Hydraulic system | System pressure(MPa) | 32 |
| Flow(L/min) | 18 |
| Oil tank capacity(L) | 280 |
| Control mode | (Cable+Radio) remote control |
| Clearing mode for concrete pipe | Water clear / Dry clear |
| Section of tubular column (m×m) | 0.75×0.75 |
| Arm(Booms) | Boom model | fully hydraulic foldable arms |
| Delivery pipeline diameter | DN125mm |
| Length of end hose (〃×m) | 5〃×3 |
| The first section | Length(m) | 10.9 |
| | Articulation | -2.5°～82.5° |
| The second section | Length(m) | 9.6 |
| | Articulation | 0°～180° |
| The third section | Length(m) | 8.5 |
| | Articulation | 0°～180° |
| Climbing | Climbing mode | Cylinder jack lifting |
| Internal climbing step distance(m) | 0.52 |
| Floor Frame | Hole prepared in floor |
| Shaft Frame | Size of climbing shaft : 2.0m-2.7m |
| Min. space between internal climbing frame | Climbing(m) | 3 |
| | Placing concrete(m) | 6 |
| | Rest(m) | 6 |
Precautions for using and keeping remote control
Wired remote control: prevent the control box from being invaded by water vapor, and the power must be cut off in time when the operation is suspended,and do not place at will or bump.Cables shall not be forced, wound, scratched or buried in concrete. After the completion of the construction, the cable surface shall be scrubbed clean, with a series of coils rolled up and placed in a safe place together with the control box.

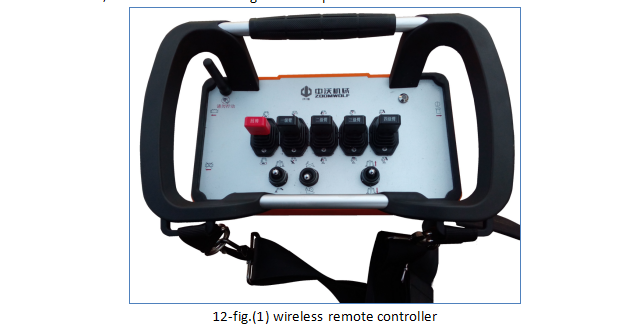

Wireless remote control: in the process of construction, the transmitter (control box) must be carried with you, to prevent the invasion of water vapor, the power must be cut off in time when the operation is suspended, and it is forbidden to place or bump against at will; The receiver shall not be moved arbitrarily, shall not be covered with dense metal products (causing signal shielding), and shall be reliably fixed.
Neither wired remote control nor wireless remote control shall be opened without authorization, otherwise it will damage its waterproof seal and shorten its service life.
About the model
HGY ×× S or P C or blank - × R
① ② ③ ④ ⑤
① Hydraulic concrete distributor
② Round number of Max.radius(m)
③ Step speed regulation(S)or
Proportional control speed regulation(P)
④ With(C)or without(blank) counter weight
⑤ Arm section number ×Roll folding(R)
【Identification letter description】
S: Step-speed adjustment
P: Proportional (Stepless speed regulation)
C: Counter weight
【The sample】
1. Model HGY33S-3R means:
Without counter weight,max.radius 33m,step speed regulation and 3 roll-folding arms.
2. Model HGY33PC-4R means:
With counter weight,max.radius 33m, proportional control speed regulation and 4 roll-folding arms.
