Product introduction HBT100SR18186C

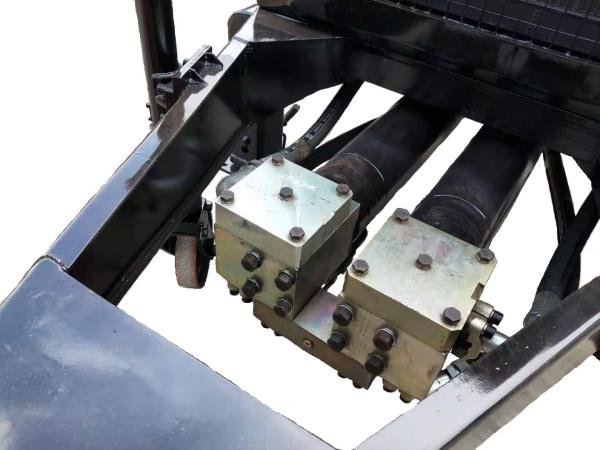

ZOOMWOLF concrete pumpHBT100SR18186C

This is a high output pressure(18MPa) concrete pump,powered by diesel engine.

Technical performance:

Output capacity(m³/h):57(high pres.)/103(low pres.)

Output pressure(MPa):18(high pres.)/10(low pres.)

Distribution Valve:S valve

Rated power of BF6M1013 diesel engine(kW):186

Oil pres.of the pumping system(MPa):32

Hydraulic system circle form:Twin-pump and -circuit open system.

Oil tank volume(L):500

Overall dimension L×W×H(mm):6460×1962×2620

Total mass(kg):6685

Concrete pump is the abbreviation of the trailer concrete pump.

Concrete pump is a kind of mechanical equipment which USES reciprocating linear motion of concrete conveying cylinder to output ready-mixed concrete at higher than atmospheric pressure.

Now the common s-tube valve pumping mechanism to illustrate its pumping principle:

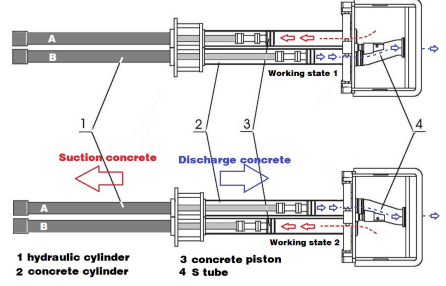

1-fig.(1)working principle of concrete pump

Working state 1: A cylinder suction, B cylinder discharge concrete;

Working condition 2: B cylinder suction, A cylinder discharge concrete.

When the process of state 1 ends, the S-tube will swing to the exit of cylinder A and enter state 2. At the end of the process of state 2, S-tube swings to the entrance of B cylinder and enters state 1...... And so on.

high pressure concrete pump

concrete pressure pump
