90kw Trailer Mounted Concrete Pump Easy Operation 6200kg Weight
HBT60S1390C Concrete Pump Machine

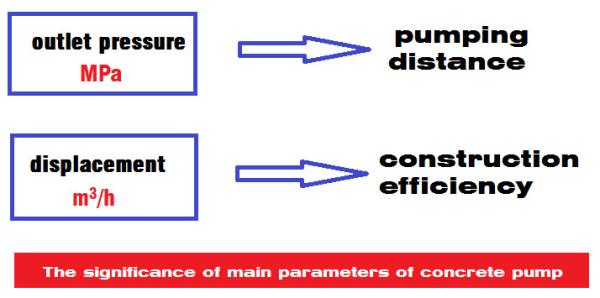

| Name of parameter | Unit | HBT60S1390C |
| Output capacity | m3/h | 41(high pres.)/69(low pres.) |
| Output pressure | MPa | 13(high pres.)/7(low pres.) |
| Distribution Valve | | Valve |
| motor model | Y2-280M-4 |
| Rated power of motor | kW | 90 |
| Rated rotating speed /voltage | rpm/V | 1480/380 |
| Displacement of the main oil pump | ml/r | 190 |
| Oil pres.of the pumping system | MPa | 32 |
| Delivery cylinder diam.×stroke | mm | Φ200×1800 |
| Hydraulic system circle form | Twin-pump and -circuit open sys. |
| Hopper volume | L | 730 |
| Feeding height | mm | 1400 |
| Oil tank volume | L | 500 |
| Max.grain size | mm | pebbleФ50,crush.stoneФ40 |
| Overall dimension L×W×H | mm | 6275×1962×2215 |
| Total mass | kg | 6200 |
About twin-pump twin-circuit hydraulic system of concrete pump
Twin-pump twin-circuit advantages: convenient fault diagnosis, convenient maintenance. And it is beneficial to extend the service life of oil pump.
The pressure oil of the main pump is supplied to the pumping circuit, and the pressure oil of the constant pressure pump is supplied to the reversing circuit, which is called "twin-pump twin-circuit".
This is shown below.

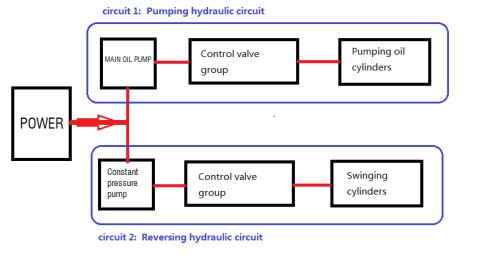

6-fig.(1)twin-pump twin-circuit
Open and closed system
Open system: the oil flow of the hydraulic system circulates through the tank.
Closed system:the oil flow of the hydraulic system circulates not through the tank.
Schematic diagram is as follows:

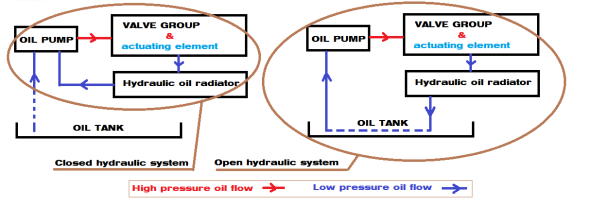

7-fig.(1) Open and closed system
