Product introduction HBT100SR18186C

ZOOMWOLF concrete pumpHBT100SR18186C

This is a high output pressure(18MPa) concrete pump,powered by diesel engine.

Technical performance:

Output capacity(m³/h):57(high pres.)/103(low pres.)

Output pressure(MPa):18(high pres.)/10(low pres.)

Distribution Valve:S valve

Rated power of BF6M1013 diesel engine(kW):186

Oil pres.of the pumping system(MPa):32

Hydraulic system circle form:Twin-pump and -circuit open system.

Oil tank volume(L):500

Overall dimension L×W×H(mm):6460×1962×2620

Total mass(kg):6685

Main parameters of concrete pump

The main parameters are the core parameters that can reflect the working capacity of concrete pump.

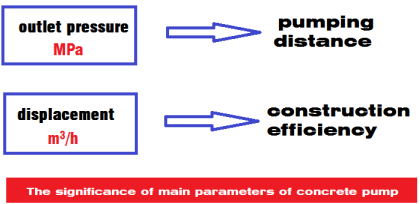

Usually we take the concrete pump outlet pressure and displacement as its main parameters. Because, the higher the outlet pressure, the longer the pumping distance; The larger the displacement, the higher the construction efficiency.

In the design of concrete pump, the main parameters are the most basic basis.

3-fig.(1)Main parameters of concrete pump
